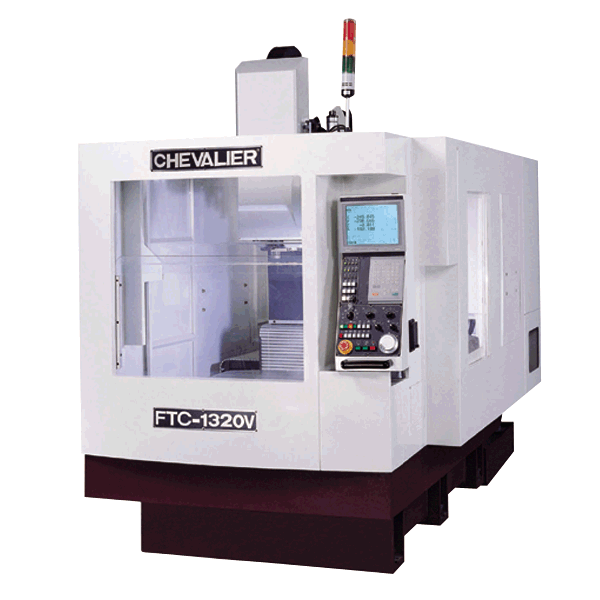

AS FAST AS YOU CAN GET IN A MACHINE THIS SIZE!

• 15,000rpm
• 20”x13”x10” XYZ travels.
• 1417ipm on XY, 1181ipm on Z axes
• Bi-directional access, cam type tool changer does random tool call-up at shortest pass, resulting in 0.8 secs. tool change.
• Servo-driven turntable provides smooth acceleration and deceleration.
• Turntable turns 180° in 2 seconds flat. Workpiece loading and unloading can be achieved during the machining cycle - ZERO loading and unloading time.
• +/-0.0001”  positioning accuracy and +/-0.00008” repeatability.
• Super precision THK SNS linear guideways with ball retainer for speed and accuracy.
• Mitsubishi 64M series control with 64-bit RISC processor; serial link for servos, spindle, DI/DO and display to reduce wiring; improved PLC capabilities with its PLC-dedicated LSI and AC digital CNC and servo.

HEAVY DUTY SPINDLE - fully supported by angular contact ball bearings mounted at a 15° angle for optimum rigidity and accuracy during high speed machining.

SMALL FOOTPRINT (61”x132” total floor area requirement) makes it ideal for factory automation and machining cells.

STANDARD ACCESSORIES: 16 tool ATC, turntable, alarm lamps and automatic door with safety switch.

SPECIFICATIONS:
