NEW

2125A-PC60

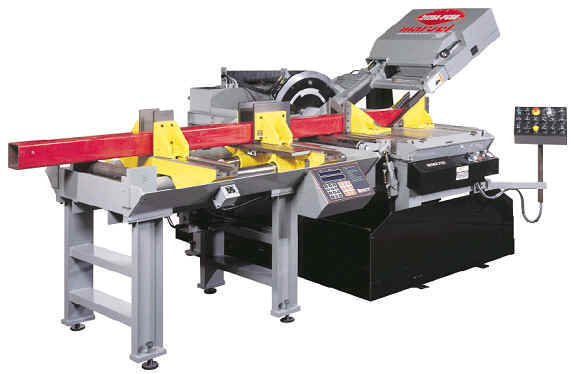

The PC60 features a large (20" x 25") capacity, 60 degree mitering in both directions and a standard 3 degree canted column for maximum versatility and high production cutting.  Our time tested Marvel PCII control, with it's user-friendly keypad and display, offers storage of up to 99 jobs as well as built in self-testing and diagnostic features.  The Marvel PC60 combines an electric blade drive with sensorless vector control, full stroke hydraulic vising, and a 24" index table with electronic measuring for increased accuracy and minimal cycle times.

  • Capacity: 20" x 25" (508 mm x 635 mm)
  • Blade Speed: 50-450 FPM
  • Feed: 0-350 lbs (0-1516 N)
  • Motor: 5 H.P. (3.7 kW)
  • Blade: 1.25 x 0.042 x 17'-6" long (31.75 mm x 1 mm x 5334 mm)
  • Shipping Weight: 7000 lbs (3175 kg)

     Series 2125




60º Tilt - Left and Right

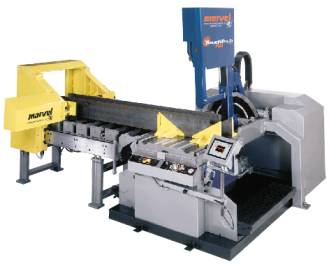

The TouchTech 60 is the first of a new family of machines built on a central design platform. Equipped with the new touch screen Cutting Edge Control, this Windows NT based control allows operators to select from preprogrammed function settings or customize functions to their personal preference. Users can build a parts library database and store the program for cutting each part or family of parts using their own numbering system.
  • Capacity: 20" x 25" (508 mm x 635 mm)
  • Blade Speed: 30-650 FPM (9-200 m/min)
  • Feed: 0-350 lbs (0-1516 N)
  • Motor: 7.5 H.P. (5.6 kW)
  • Blade: 1.25 x 0.042 x 17'-6" long (31.75 mm x
    1 mm x 5334 mm)
  • Shipping Weight: 8480 lbs (3846 kg)

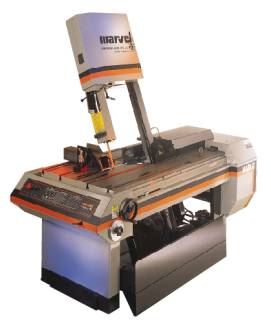

Series 8 Mark II - Our most popular band saw, a truly universal machine capable of making virtually any conceivable straight or miter cut (45° right & left).

Available in both standard and high column models. All mechanical.

  • Capacity: 18" x 22" (457 mm x 560 mm)
    at 45 degrees: 18" x 12-3/4" (457 mm x 394 mm)
  • Blade Speed: 50-450 FPM (15-137 m/min)
  • Feed: 0-140 lbs (0-64 kgf)
  • Motor: 2 H.P. (65 kw)
  • Blade: 14'6" x 1" (4420 mm x 25 mm x .89 mm)
  • Shipping Weight: 2870 lbs (1300 kg)
















Great for structural cutting applications

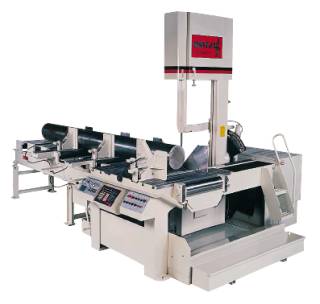

Series 81 & 81APC - Versatile, high speed, high production vertical band saw. Whether you choose the Series 81APC automatic bar feed machine or the Series 81 single cut model, you will be getting a powerful, and extremely versatile band saw that will provide unequaled metal sawing performance and a long service life.

  • Capacity: 17" x 20" (432 mm x 508 mm)
  • Blade Speed: 60-400 FPM
  • Feed: 0-300 lbs (0-136 kgf)
  • Motor: 10 H.P. (7.46 kW)
  • Blade: 14'6" x 1-1/4" (4420 x 32 x 1.07mm)
  • Shipping Weight: 8000 lbs (3650 kg)









Great for structural cutting applications





MV525 & MV525APC - Larger than our Marvel #81 series, the MV525 miter cutting production saw allows you to cut rectangles up to 21" x 22.5" or rounds up to 21". The 15 H.P. main motor and planetary gear drive provide plenty of power for the bigger, tougher jobs, while the added beam strength of the 1.5 inch blade combined with rigid carbide guides assure accuracy and consistency. Optional equipment includes extended frame and canted 3° entry angle.

  • Capacity: 21" x 22.5" (533 mm x 571 mm)
  • Blade Speed: 60-400 FPM (18-122 m/min)
  • Feed: 0-350 lbs (0-159 kgf)
  • Motor: 15 H.P. (11 kW)
  • Blade: 1-1/2" x .050" x 17' 6" (455 mm x 38 mm x 1.27 mm)
  • Shipping Weight: 6,380 lbs (2895 kg)





The Series 25 & 25APC -- The Series 25 is Marvel's largest high-speed, heavy-duty vertical band saw. It is designed for fast, easy overhead loading -­ the counterbalanced column tilts 45 degrees left and right for added versatility. The Programmable Control allows for easy and quick set up of jobs.

  • Capacity: 25" x 28" (635 mm x 711 mm)
    at 45 degrees: 25" x 16" (635 mm x 406 mm)
  • Blade Speed: 55-340 FPM
  • Feed: 0-350 lbs (0-159 kgf)
  • Motor: 15 H.P. (11 kW)
  • Blade: 18' 10" x 1-1/2" x .050"
    (5740.4 mm x 38 mm x 1.27 mm)
  • Shipping Weight: 16,000 lbs (7,250 kg)











Series V10 & V10APC ­ A solid, versatile vertical saw that will make a wide range of cuts and miters. It functions as an automatic cut-off saw that will index stock weighing as much as 5,000 lbs. PCII Programmable control available in automatic feed model.

  • Capacity: 10" x 14" (254 mm x 356 mm)
    at 45 degrees: 10" x 9" (254 mm x 229 mm)
  • Blade Speed: 50-500 FPM (15-152 m/min)
  • Feed: 0-250 lbs (0-113 kgf)
  • Motor: 3 H.P. (2.2 kW)
  • Blade: 13'6" x 1" (4115 mm x 25 mm x .89 mm)
  • Shipping Weight: 3100 lbs (1406 kg)










Spartan Contour Saws are available with either 20" (500 mm), 26" (660 mm), or a 36" (914 mm) throat capacity and are equipped with either a stationary table or one that is powered for more repetitive work. All 3 models feature standard equipment including the welder, annealer, grinder, blade shear, work light, chip blower, and blade tension indicator. These machines are designed for rugged performance on a wide variety of materials at a minimum cost.

  • Blade Speed: Low: 50 fpm, High: 5000 fpm
  • Motor: 3 H.P. (65kw)
  • Blade Width: 1/8"­1" (3.18 mm­25 mm)
